With the module Carrier you can create pallet labels or forwarding bills for any forwarding agency, print them out and then report them to the forwarding agency with an advice or send them to the forwarding agency as a CSV file. The module supports SSCC's, BBD's and batches and you can, if necessary, create GS1 barcodes.
In addition to the interfaces to the known parcel service providers, you can store a shipping company under Administration > Settings > Fulfillment → Shipping methods → Carrier. This shipping method can then be selected in the order or delivery note as usual. You can find more information here.
In the Appstore you can find the Carrier module. In this module you can create delivery orders for the carrier company and store the essential characteristics regarding franking etc.. In the tab Open packages you can select the packages for a forwarding order to the forwarding company and then transfer them as CSV/PDF.

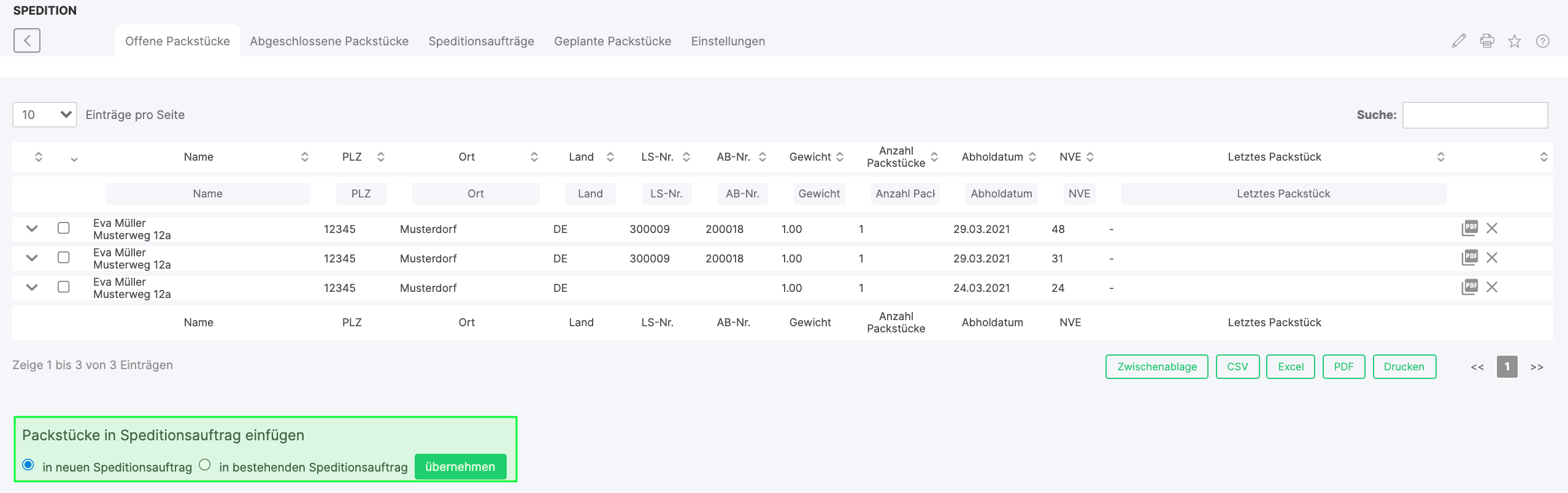

To add packages to a shipping order, you have two options in the Open packages tab.
To create a shipping order, first create a delivery bill with the shipping type "Shipping" (Warehouse & Logistics > Delivery bill > +NEW). Then switch to the Parcel Label tab and create the parcel labels by ticking CreateNVE. With each parcel label a forwarding order will be created in the forwarding module under open packages. You can see this in the column "NVE". Likewise, when you create a package tag, click on the NVEs button at the bottom right.

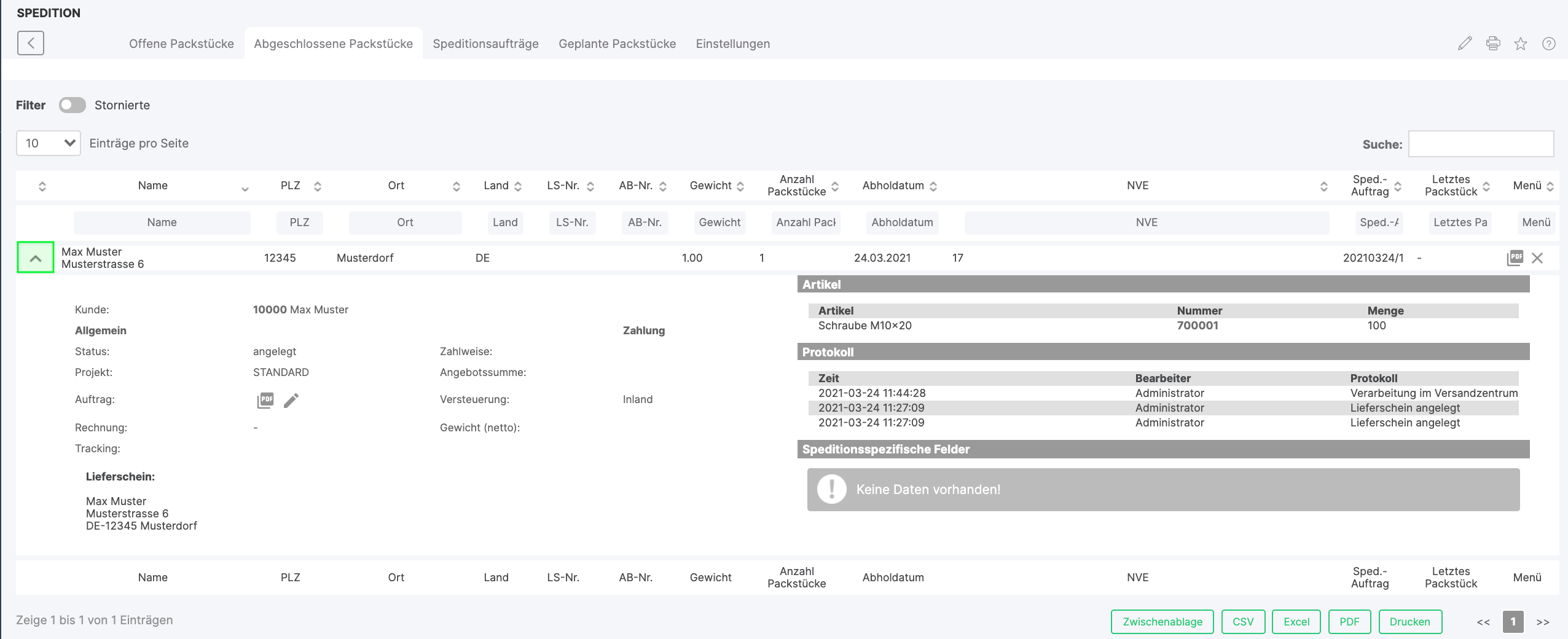

In the Completed Packages tab you will see an overview of all packages that you have previously added to a new or existing forwarding order in the Open Packages tab using the button at the bottom. Customer-specific data such as name and postal code, details of the delivery bill (LS) and the packages as well as SSCC´s are displayed. Via the PDF button you can print out the corresponding label using the printer spooler that appears afterwards. A click on the cross icon deletes or cancels the entry.

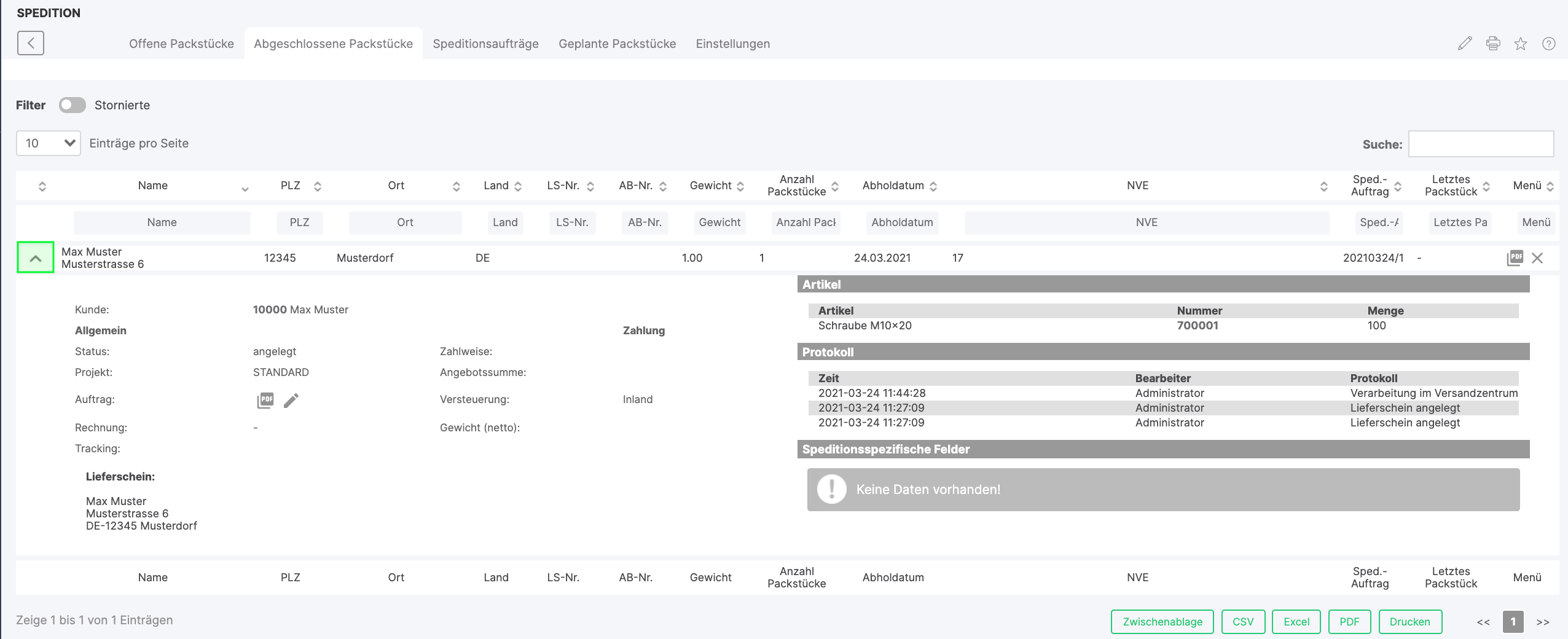

Via the mini-detail you have the possibility to view the forwarding order and to check all details of the process:
Filter
As a filter you can set Canceled, which will then show you only canceled packages.
In the Forwarding orders tab you will find an overview of all forwarding orders that have already been transferred to forwarding orders via the Open packages tab.
In the menu column you can edit the shipping order with the Pen icon. Click on the PDF icon to download the PDF document for the shipping order. A click on the cross icon deletes or cancels the entry.
In the tab Planned packages you see an overview of all packages that are planned. However, they are not yet completed or inserted as a forwarding order.
In the menu column you use the pen icon to edit a single package, a click on the PDF icon downloads the shipping order as a PDF and the cross icon deletes or cancels the entry.
To insert a new package, click on the +New entry button.
You can enter these details:
-
Delivery Note: Either enter a new delivery note number or select one from the list, which you can view by clicking on the magnifying glass icon
-
Pickup date: Enter the pickup date of the package in the specified format
Finally, click on Save.
In the Settings tab you can define various information as follows per carrier.
To create special fields for a specific shipping company, you can use the Special fields for shipping company field.
You can enter the following information:
-
Shipping company: Enter the shipping company or select one from the list that appears by clicking on the magnifying glass icon
-
Field: Enter the name of the field
-
Value: This entry is optional. Enter the value that describes the field in more detail
-
active: The check mark must always be set so that the special field can be mapped on the package label
Finally, click on create.
You will then see the created special fields of the shipping company in the overview on the left side.
In the Settings tab, you can first make settings for the SSCC, barcode, delivery bill and package that are relevant for package mark printing. You can assign a consecutive SSCC, which can be accessed by a variable.
You can enter the following information:
-
Next SSCC: Enter the SSCC consecutively
-
extra Barcode: By checking this box, an extra barcode will be created and printed
-
Content extra barcode: If you have checked the field "extra barcode", enter here the content of the barcode
-
URL for GS1 barcode: If you have checked the field "extra barcode", enter here the URL for the GS1 barcode
-
URL for SSCC barcode: Enter the URL for the SSCC barcode
-
Print delivery note only after completion: By checking this box, the delivery bill will be printed only after the shipping order has been completed
-
Use label template: By checking this box, you will use a previously created label template
-
Master / pallet template: If you have checked the "Use label template" box, you can now select the template for the label on the pallet from the drop-down menu
-
Package: By ticking the box it becomes clear that it is a single package
-
Submission slave / package: If you have checked the Use label template box, you can now select the template for the label on the package from the drop-down menu
Information about creating and printing shipping labels can be found here.
