The item tree allows you to group your products in categories based on criteria that you can freely choose according to your business needs. You can use multiple levels of categories and subcategories to get an overview over the structure of your products. This can be especially helpful if you are producing items.
You can use the item tree for the following:
Note
The following shop interfaces are supported:
-
Classic: Shopware 5, Shopware 6, Magento 2
-
Connect: Shopify, WooCommerce
-
Export it to a supported online shop to create item categories there
-
Improve navigation of your product master data
Note
These categories are used for the export to online shops and are separate from the categories in the Item categories app. The categories in the Item categories app are used for product-specific number ranges as described here: Artikelnummernkreis und SKU (Stock Keeping Unit) (Xentral Artikelkategorien).
If you are looking for bill of materials, you can find an article here: Bill of materials, information on variants can be found here: Matrix product - Create product variants.
You can find the Item tree app by using the Smart Search or under Appstore > Master data > Item tree.
Using the item tree, you can create a structured overview of all your products based on product categories and subcategories. It can give you an overview of your products and their relation to each other.
You can search for product categories and subcategories using the Designation field above the item tree.
To create a new product category:
-

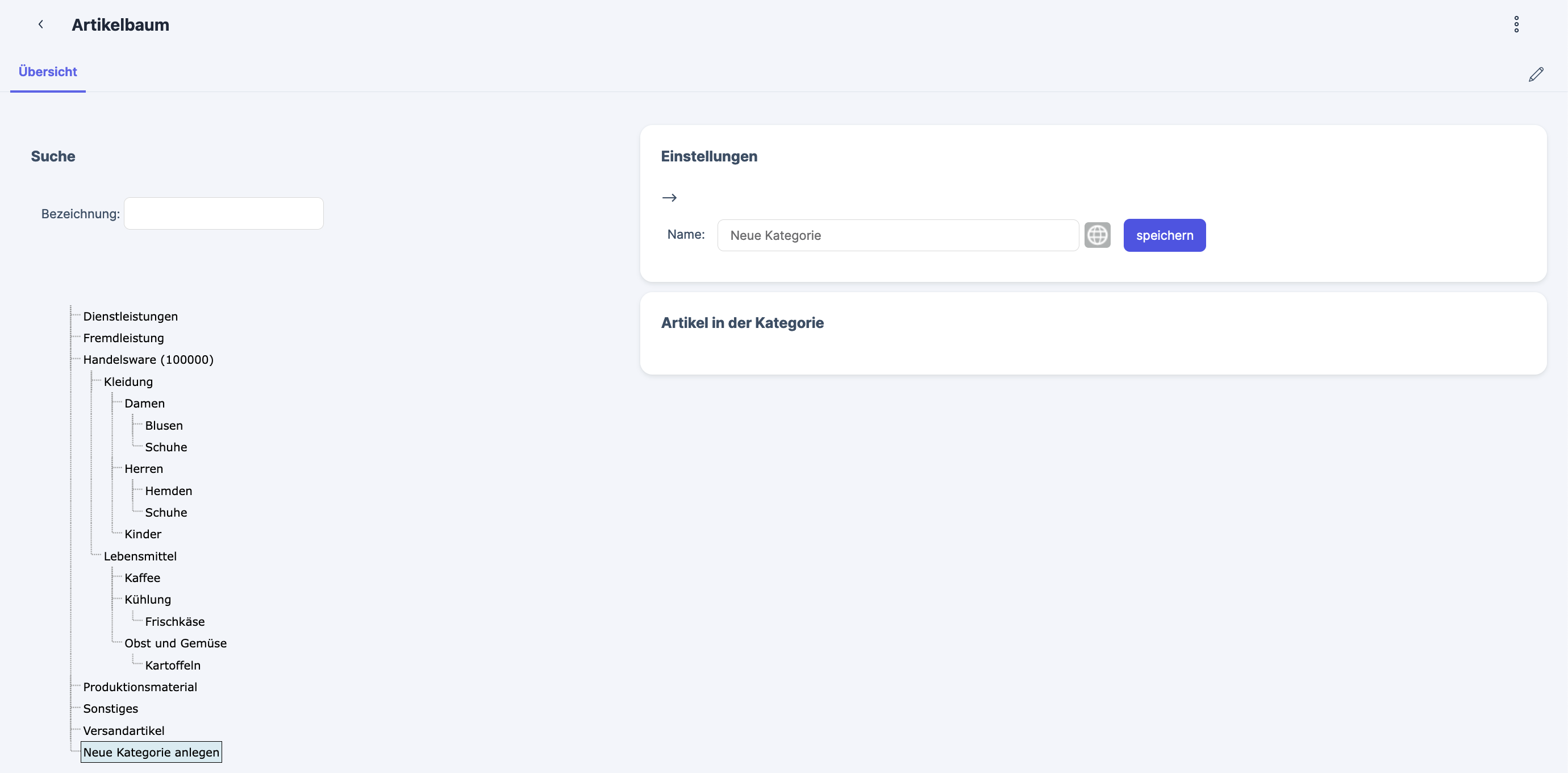

In the item tree on the left, click Create a new category on the bottom of the tree.
-
Enter the name of your category in the Name field, e.g. consumables, coffee supplies, books, multimedia, etc.
Note
You can translate your category into any language you set up in the Language list app by clicking on the Globe icon next to the category. Here, you need to create a new entry, then select the Language you want to add, and enter the Translation into the respective field.
-
Click Save.
Your new product category is displayed in the item tree. The categories are always displayed alphabetically. The sorting order cannot be changed.
You can create subcategories for each product category to refine your product groupings.
To create a new subcategory:
-

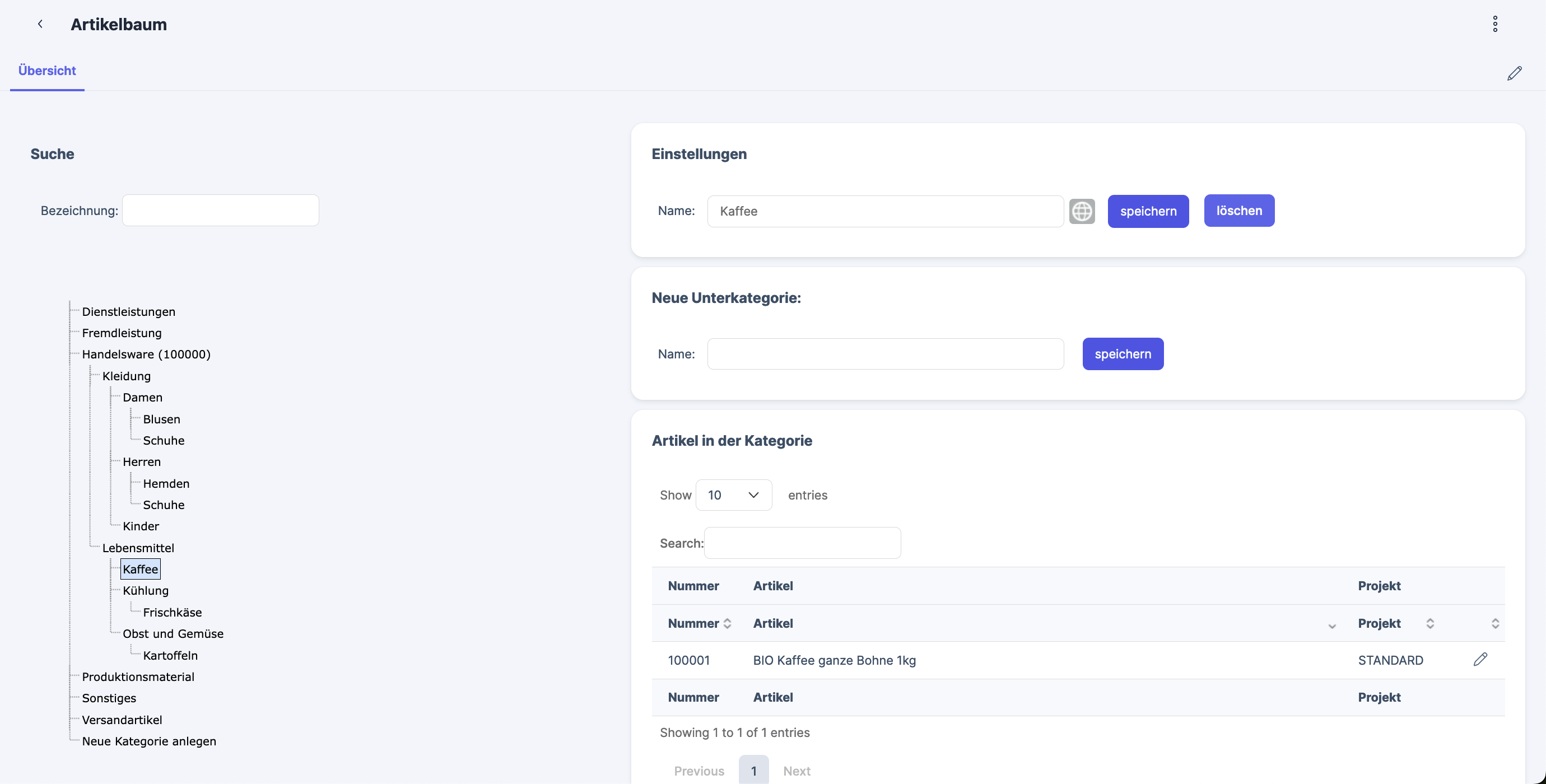

In the item tree on the left, click on the product category for which you want to create a subcategory.
-
In the entry form on the right enter the name for your subcategory in the Name field in the Neue Unterkategorie (new subcategory) section.
-
Click Save next to the Name field.
Your new subcategory is displayed in the item tree under your main product category.
To delete a product category:
-
In the item tree on the left, click on the product category you want to delete.
-
In the Einstellungen (settings) section, click löschen (delete) next to the name of your product category.
-
In the dialog that appears, click OK to confirm the deletion of the product category.
The product category is deleted and it's no longer available in the item tree.
Note
When deleting a category, all its subcategories are deleted as well.
To have a product listed in a product category of the item tree, you need to assign the category in the product master data. You can either do this manually in the product master data or you can import a CSV file via the import central and assign categories to multiple products at once.
You can assign a product to multiple categories at once, e.g., a product can be listed in the Clothes and For sale category at the same time.
To assign product categories to a single product:
-

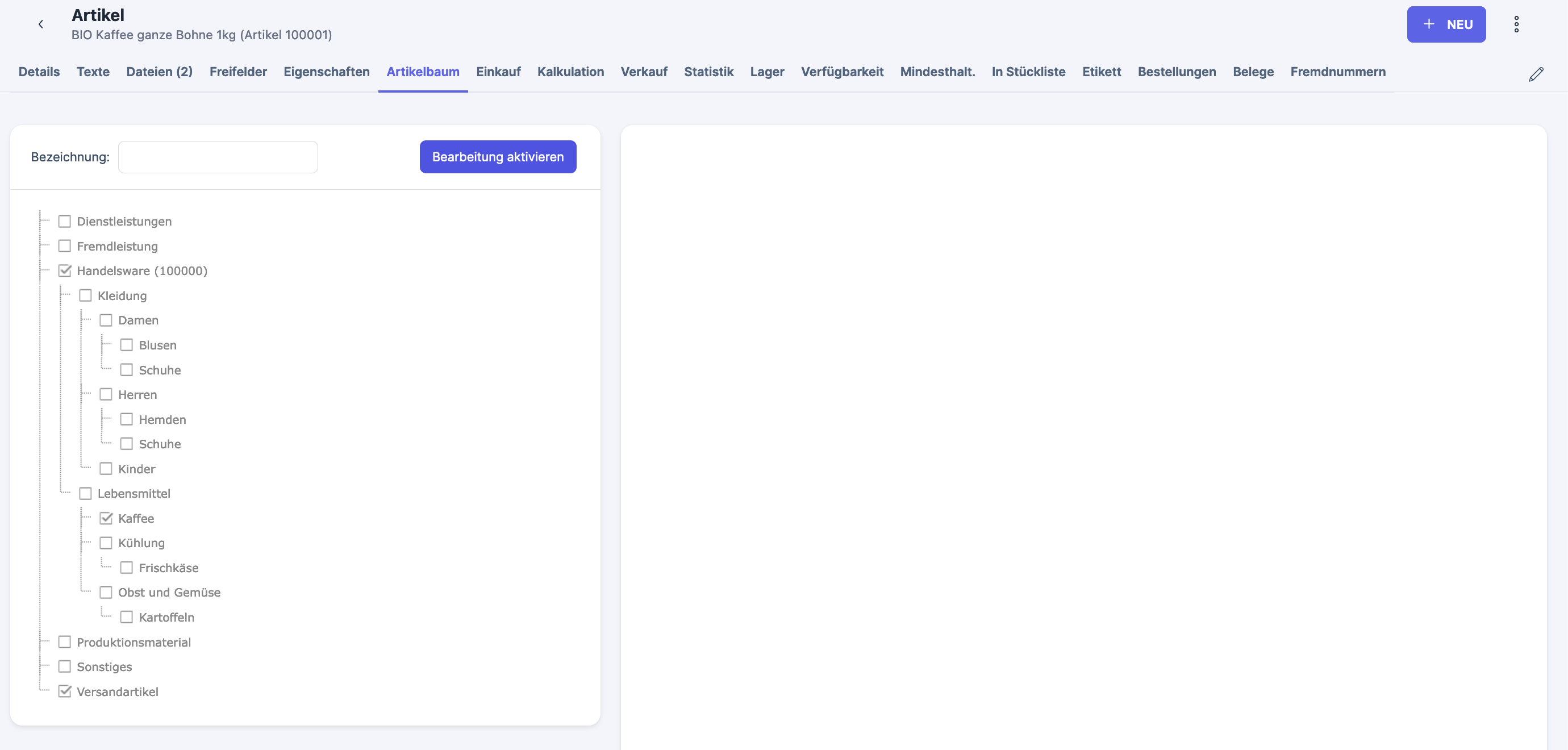

Go to Sell > Products, open your product and switch to the Item tree tab.
-
Click Enable editing above the item tree.
-
Select the check boxes for all product categories and subcategories which you want to assign your product to.
Your changes are saved automatically.
You can assign multiple categories to multiple products at the same time by using the import central. This is especially helpful if you have a lot of different products and want to add categories on bulk. You can find out more about this in the following article: Assign categories to multiple products in the item tree via the import central.
You can export the item tree to some online shops to automatically create your desired categories and shop structures. You can select which part of the tree should get exported by selecting a root category in the Xentral interface of your online shop. This will be the basis from which the shop exports the item tree.

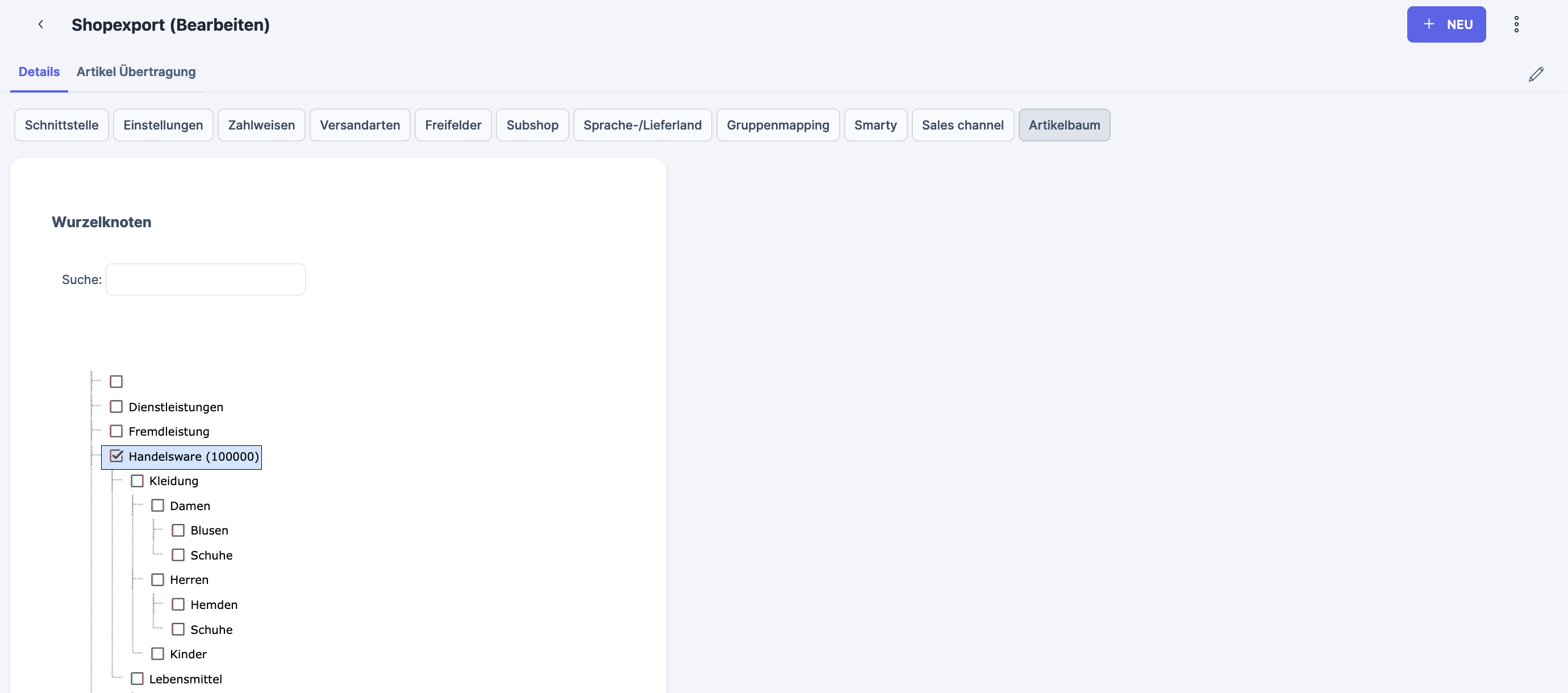

In the example in the screenshot, only categories and products that are attached to the Handelsware category will be exported to the shop. If you select the uppermost check box, every category will be exported.

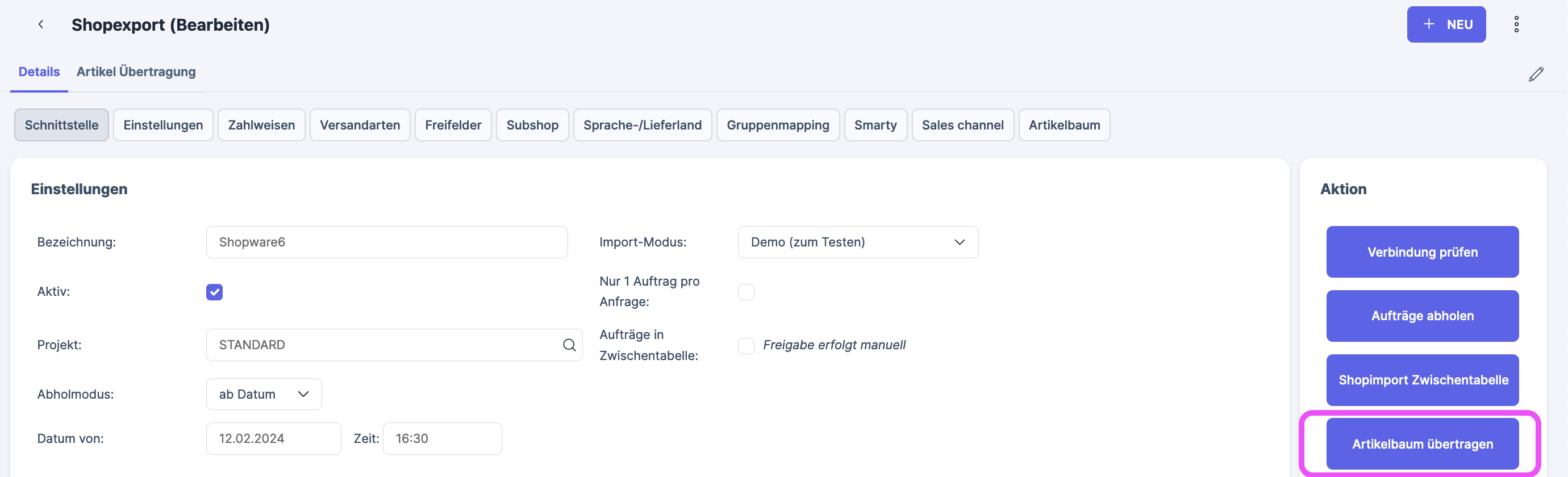

You can then export the item tree in the Interface tab of your shop interface by clicking Artikelbaum übertragen (Transfer item tree) in the Action menu on the right. This option is only available if the shop supports item trees.
You can choose to display the item tree in the product overview. This can help you filer products more easily by letting you filter your own categories.
To display the item tree in the product overview:
-
Go to Administration > System > Basic settings > System tab.
-
Select the Overview of item tree check box in the Product section.

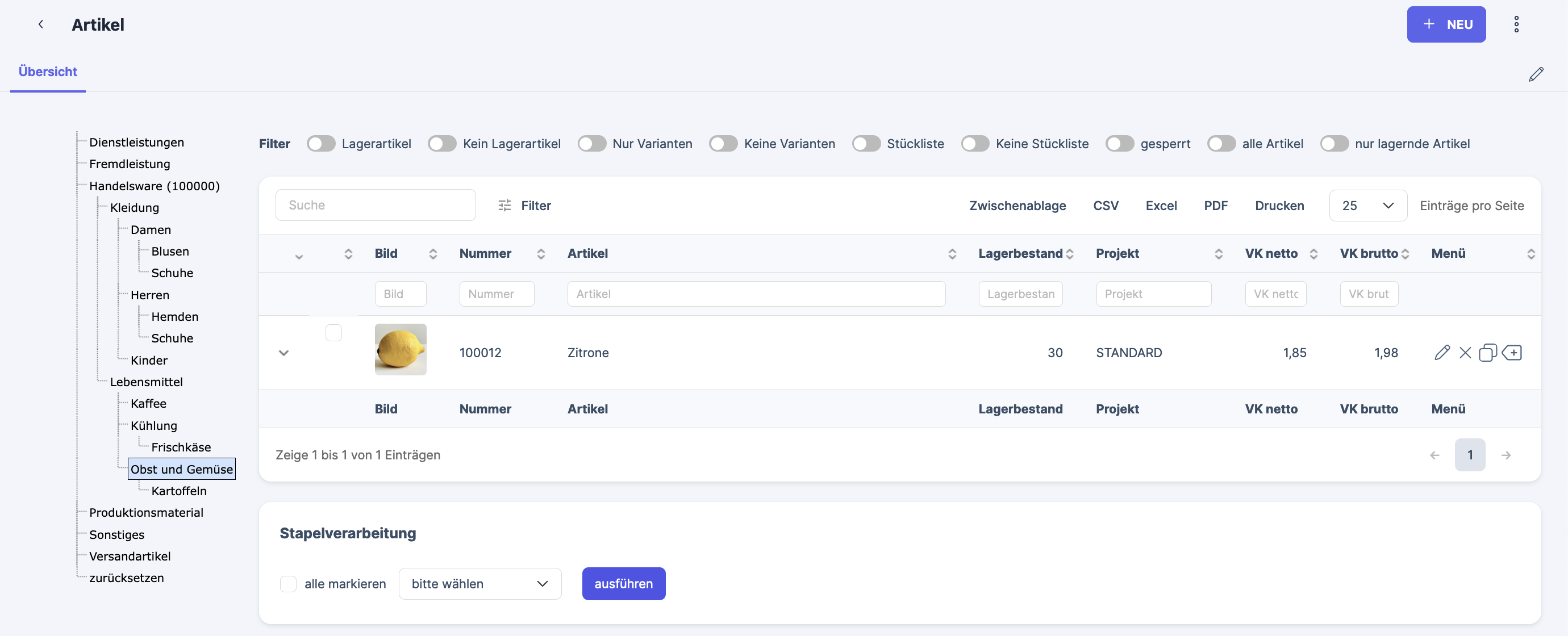

The item tree is displayed on the left side of the product overview screen.
